External Mount GPS Receiver





Price: £ 50.17 + VAT
VAT is charged at 15% for all EU customers unless a valid VAT number is supplied. To get an approximate conversion of this price to your currency, Click Here.

Postage Costs:

UK: £4.55 (Guaranteed before 1pm next day. Insured. Signature Reqd.)

Europe: £6.57 (Insured, Signature Reqd. upon delivery)

Order Now Using Secure Credit Card Server


External Mount GPS, MR-350


Mobile GPS Navigation!


- Bulkhead (through-hole) mount

- 20 channel SiRF Star III high performance GPS chipset

- USB / RS-232 / PDA cables available as optional extra

- Waterproof housing and mount

- 5 meter (15 feet) cable



Description:

The MR-350 is a “mini” external GPS receiver, which utilizes a bulkhead (through-hole) mounting design for applications that require a more permanent weatherproof mounting solution. The built-in GPS receiver is self-contained with the latest 20 channel SiRF Star III high performance GPS chipset for accurate positioning and an active patch antenna. The extended 5 m (15’) data cable allows for easy routing to your laptop behind headliners and side panels and terminates to a custom PS/2 connector for interfacing with one of the available cable kits that can be purchased separately (USB/RS232/ PDA). The MR-350 can be used in a wide variety of applications including being mounted on police and fire trucks, utility/commercial vehicles, boats and aircraft.

MR-350 includes drivers for both Windows and Macintosh so you can use it with any NMEA compliant mapping software on the market today:

Macintosh Driver

The Macintosh driver for this product is available here.



Features:

  • "SiRF Star-III high performance and low power consumption chipset
  • WAAS capabled engine board for greater accuracy
  • 20-channel all-in-view tracking
  • Active patch antenna
  • High sensitivity to satellite signal
  • Cold start 42 seconds, average
  • Superior urban canyon performance
  • Supported NMEA 0183 v2.2 command: GGA, GSA, RMC, GSV
  • SiRF binary: position, velocity, altitude, status and control

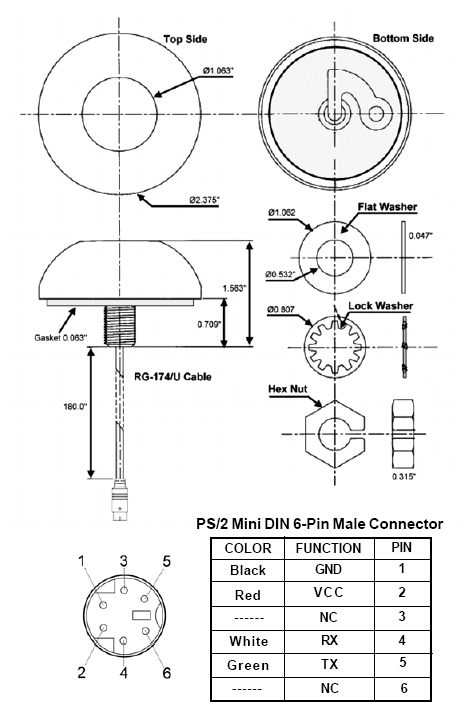

Dimensions:

Bulkhead Mount GPS
Interface:


USB, RS-232 and PDA cables available.



Benefits:


PLAN ROUTES AND TRIPS
Use your TripNav on business or pleasure and eliminate the frustration of driving in unknown areas, whether it be across town or across the country. With TripNav and your personal mapping software (not included) installed on your laptop, you can chart your travel progress in real-time.

SEE YOUR LOCATION
Need to take a detour? No problem, see your exact position in relation to your planned route to easily get back on track by using GPS technology.

NO SUBSCRIPTION FEE
TripNav requires NO SUBSCRIPTION fees!





Specifications:


Electrical Characteristics (Receiver)

Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Sensitivity

-159 dBm

Antenna

Active patch antenna

Accuracy

Position Horizontal

10m 2D RMS

Velocity

0.1m/sec 95% (SA off)

Time

1 micro-second synchronized to GPS time

WAAS

5m 2D RMS

Datum

Datum

WGS-84

Acquisition Rate

Hot start

8 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Reacquisition

0.1 sec. average (interruption recovery time)

Protocol

GPS Protocol

Default: NMEA 0183 (Secondary: SiRF binary)

GPS Output Data

SiRF binary >> position, velocity, altitude, status and control, NMEA 0183 V2.2 protocol, and supports command: GGA, GSA, GSV, RMC.

GPS transfer rate (baud rate)

Default: 4800,n,8,1 for NMEA. Configurable 4,800-57,600

Dynamic Condition

Acceleration Limit

Less than 4g

Altitude Limit

18,000 meters (60,000 feet) max.

Velocity Limit

515 meters/sec. (1,000 knots) max.

Jerk Limit

20 m/sec**3

Temperature

Operating

-40°~ 85°C (-40°F~ 185°F)

Storage

-30°~ 80°C (-22°F~ 176°F)

Humidity

Up to 95% relative humidity

Power

Voltage

3.3v ~ 5v DC input (USB or PS/2)

Current

80mA (continuous mode). 35mA (trickle power mode)

Physical Characteristics

Dimension

2.38" diameter x 1" Height. (60.3mm x 25.4mm)

Cable Length

180" (457cm) Terminates to PS/2
