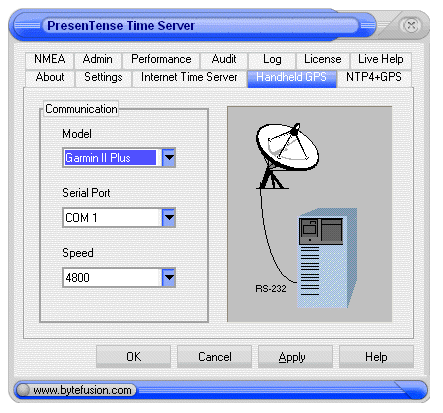

Use this option to specify the model of your GPS
receiver. Supported units
|
|
a) Generic : Support for generic NMEA GPS receivers that conform to the NMEA 0183 standard and emit the GPRMC or GPGGA sentence at regular, precise
intervals of one or two seconds.
|
|
b) Garmin 38 : Hand held GPS receiver from
Garmin Corporation.
|
|
c) Garmin II Plus : Hand held GPS receiver
from Garmin Corporation with support for external antenna connection. This option includes the Garmin III Plus and the
Garmin V.
|
|
d) TripNav TN-200 : USB port powered GPS
receiver from Rayming Corporation. Please note that long USB cables and operating system overheads in servicing the virtual COM port
may result in signal offsets that are specific to your site. If you require a high degree of accuracy, we recommend the use of the
NTP4 plugin TripNav TN-200 driver and suggest you calibrate your GPS installation as illustrated in the
section NTP4 Plug-In Driver Calibration.
|
|
Use this option to specify the serial port on your PC to
which the GPS receiver is connected.
|
|
At present, NMEA 0183 only supports 4800 Baud.
|
