GPS Engine Board


GPS engine board reseller


Price: £ 42.80 + VAT (Volume discounts available.)
VAT is charged at 15% for all EU customers.To get an approximate conversion of this price to your currency, Click Here.

Postage Costs:

UK: £4.55 (Guaranteed before 2pm next day. Insured. Signature Reqd.)

Europe: £6.57 (Insured, Signature Reqd. upon delivery)

Order Now Using Secure Credit Card Server

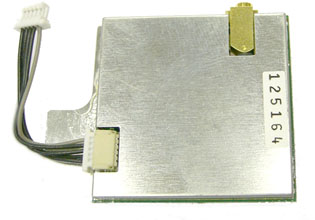

GPS Engine Board,
EM-408


OEM GPS Solutions!


- SiRF StarIII high performance GPS Chipset

- Very high sensitivity (Tracking Sensitivity: -159 dBm)

- Extremely fast TTFF (Time To First Fix) at low signal level

- Compact size (36.4mm x 35.4 mm x 8.3mm)

- Supports NMEA 0183 and SiRF binary protocols


Specifications:

General

Chipset SiRF StarIII
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Sensitivity -159 dBm

Accuracy

Position 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enabled
Velocity 0.1 m/s
Time 1us synchronized to GPS time

Datum

Default WGS-84

Acquisition Time

Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average

Dynamic Conditions

Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters /second (1000 knots) max
Acceleration Less than 4g
Jerk 20m/sec **3

Power

Main power input 3.3V DC input
Power consumption 75mA (Continuous mode)

Interface

Dimension 36.4mm x 35.4mm x 8.3mm
Baud rate 4,800 to 57,600 bps adjustable
Electrical level TTL level
Output voltage level: 0V ~ 2.85V
Output message SiRF binary or NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL

Environmental

Operating Temp –40°C to +85°C
